Bausch & Lomb Hastings Triplet Measuring Magnifiers

The two models shown directly below, Model BLM-092 and BLM-093 are used with accessory reticle scales for precision industrial or scientific measurement of flat objects or surfaces such as radiograph images. The Hastings triplet magnifier bodies are available in 7x or 10x magnification.  Four reticle measuring scales cover a range of linear and angular measurements. The Hastings magnifier is made by Bausch & Lomb.

BLM-192

Large View

Bausch & Lomb - 7x Hastings Triplet Measuring Magnifier

Hastings Triplet Measuring Magnifier - 7x power has a focal distance of 1.5"/3.9cm, 28 diopters and a 19.8 mm lens diameter.

The Hastings Triplet Measuring Magnifier is a valuable tool whenever and wherever precision work is performed and is used to make critical measurements of flat objects which can be brought into contact with the measuring reticle.

The Hastings lens is adjustable for individual focus and provides a flat, distortion-free image. The transparent body allows illumination to fall on the magnified area.

Accessory reticle measuring scales screw onto bottom of the body.  Includes storage case which can hold magnifier and reticle's and keeps the magnifier safe and damage-free, even in harsh work environments.

The measuring reticle's shown in the photo are sold separately.

81-34-35

BLM-193

Large View

Bausch & Lomb - 10x Hastings Triplet Measuring Magnifier

Hastings Triplet Measuring Magnifier - 10x power has a focal distance of 1.5"/2.5cm, 40 diopters and a 15.8 mm lens diameter.

The Hastings Triplet Measuring Magnifier is a valuable tool whenever and wherever precision work is performed and is used to make critical measurements of flat objects which can be brought into contact with the measuring reticle.

The Hastings lens is adjustable for individual focus and provides a flat, distortion-free image. The transparent body allows illumination to fall on the magnified area.

Accessory reticle measuring scales screw onto bottom of the body.  Includes storage case which can hold magnifier and reticle's and keeps the magnifier safe and damage-free, even in harsh work environments.

The measuring reticle's shown in the photo are sold separately.

81-34-33

BLM-194-A

Large View

Bausch & Lomb Measuring Reticle

For Models: BLM-092 & BLM-093

General Purpose Scale
Measures radii from 1/16" to 3/8", angles in single degrees to 90°, .005" to .1mm scales, and line widths of .001", .002" and .003"

81-34-36

BLM-194-B

Large View

Bausch & Lomb Measuring Reticle

For Modes: BLM-092 & BLM-093

Inch Scale
Measures ¾" in .005" intervals

81-34-37

BLM-194-C

Large View

Bausch & Lomb Measuring Reticle

For Modes: BLM-092 & BLM-093

Metric Scale
Measures 20mm in .1 mm intervals

81-34-38

BLM-194-D

Large View

Bausch & Lomb Measuring Reticle

For Modes: BLM-092 & BLM-093

Protractor Scale
Measures 360° degrees in single degrees

81-34-39

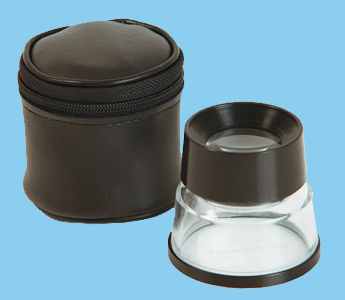

EOM-156

Large View

Electro-Optix 8x Linear Measuring Reticle Magnifier

The single element, precision lens fixed focus magnifier with linear measuring reticle allows precisions measurements of 1/64" and 0.5mm increments.

Comes in "leatherette" zippered case for storage.

The housing is made of light weight industrial quality resin and has a clear acrylic base to admit light from all directions for shadowless viewing and to prevent scratching to the inspected surface.

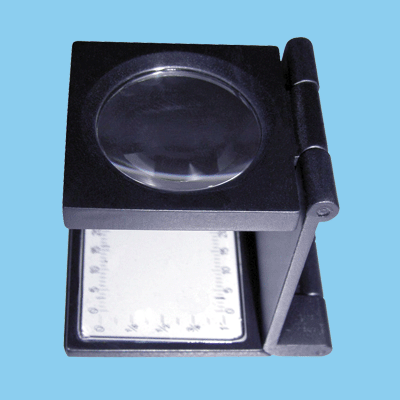

EOM-163

Large View

Electro-Optix Linen Tester with 1/8" & 1MM Reticle

Electro-Optix linen tester with glass scale/reticle and a full 1-inch distortion free optical glass lens.

Reticle has both 1/8" and 1MM increments for those precision measurements!

The housing is made of machined alloy metal for durability, corrosion resistance and light weight and then black anodized for sharp contrast.

These magnifiers fold flat to store easily and come boxed with a " leatherette" storage pouch.

EOM-158

Large View

SMG-167

Large View

Selsi Hand-Held 5x Illuminated Magnifier with Removable Textile Plate

This is a superior quality hand-held magnifier with a 1 7/8" precision ground optical quality glass lens and a metal handle.

The textile plate measures in millimeters and 1/32 of an inch.

Requires two "D" batteries (not included).

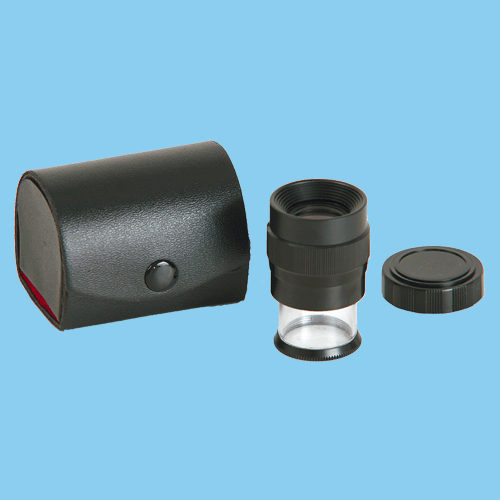

EOM-081

Large View

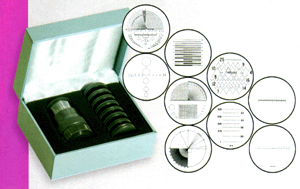

EOM-082

Large View

Step Over To The Next Page of Magnifiers
